Vehicle style

50CC

Dimensions(L*W*Hmm)

1865*725*1230(mm)

Wheel Base(mm)

1270

Net Weight (kg)

90

Ground Clearance(mm)

85

Engine Type

JN1P39QMB

Engine Style

50CC,4 stroke, Air-cooling

Bore * Stroke

39mm*41.4mm

Compression Ratio

10.4:1

Max Power

2.2 Kw/ 8000r/min

Max Torque

2.8N.m / 5500r/min

Starter

Electric

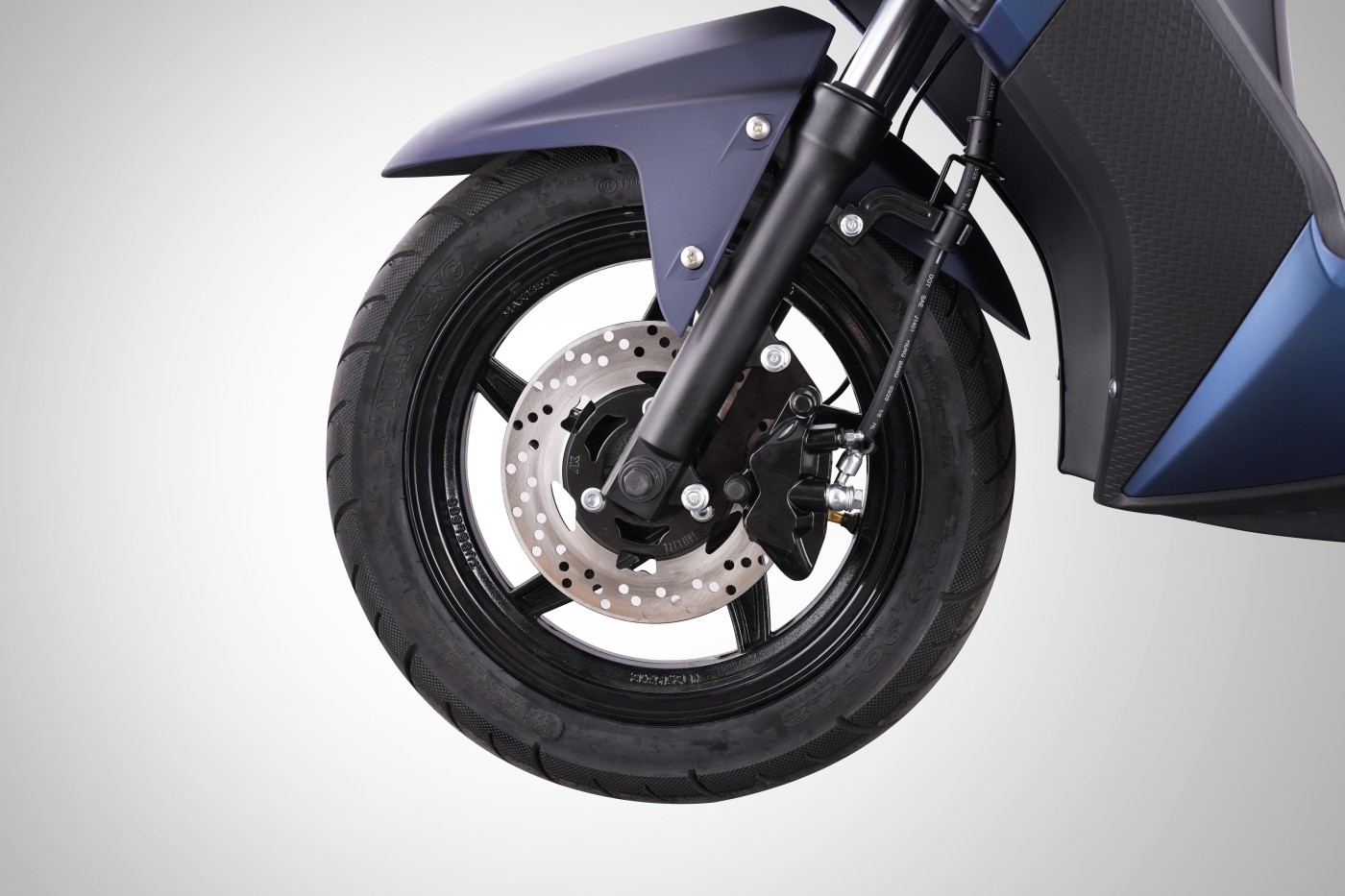

Brakes

Disc/drum

Clutch type

Automatic

Front/Rear  Tire

 F/：90/90-12 R:90/90-10

Front/Rear  Rim

  F：MT2.15*12 R:MT2.15*10

Battery

12V8.6AH

Max Speed(km/h)

45

Max Load(kg)

150

Fuel Tank

5L
